All you need to know about locks and picking them

Dimple lock

Bumping the Magnum Millenco

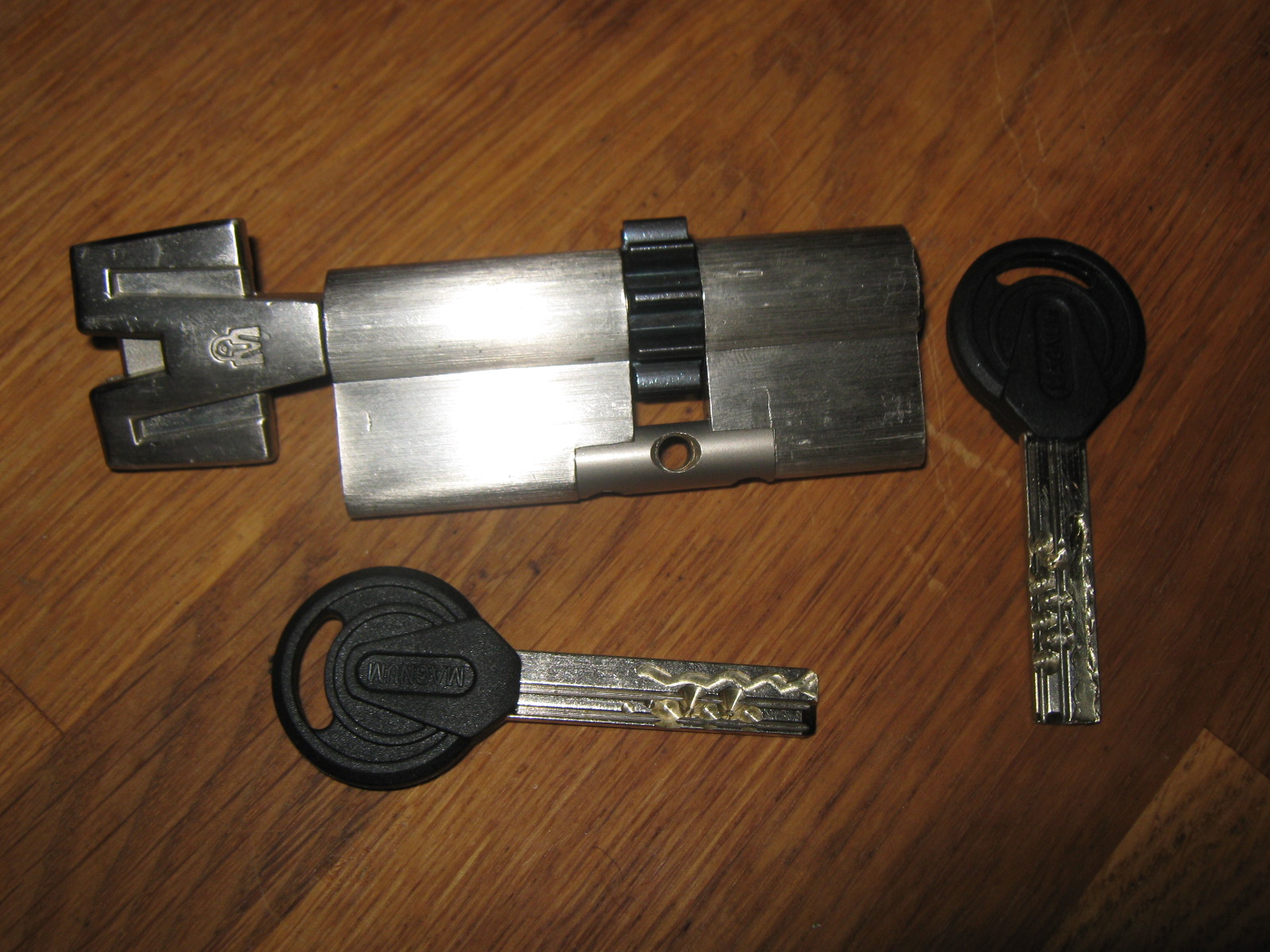

 A relatively new lock is out in the UK ,the Millenco Magnum which is made in Chine.

This lock however is known in Israel for at least a couple of years (it’s named Superior in here).

The lock contains 7 pins and a side bar (which has another 4 pins)

There are only 3 heights to each pins.

I’ve sent a few of those locks to friends in England and the lock was picked but it’s not an easy one,it requires lots of patience and it’s quite tricky to pick.

I tried to foil the lock at first but this method will not work in here, and then I first started thinking of making a bump key to this lock.

My first instinct was of course that it can’t work because of the side bar and the pins shape in the plug but I’m a great  believer in trying things . Making the groves for the side pins bump key wasn’t so easy at all but I did take some notice to the  VW keys patterns  I have and decided to try a few and after 5 blanks (the key material is very strong and will ruin cutters on the dimple cutting machine) I manged to bump  this lock!

Here is a video on how it’s done.

Here are 2 videos of picking the lock by Mikey and Dark horse.





And Orc and Bill





Also a there is a very good video made by an English locksmith named Jay  from Island locksmith LTD.

I don’t know jay personally but I’ve heard many good things about him and judging from his videos he know his work very well (I can’t put his video  in here without a permission so you might want look for Millenco Magnum in YouTube.)

Advertisements

Keso 2000 Foil Picking



About a year ago I had a great meeting with Toools members from Holland and we even made a video together .

In the video I demonstrate a very cool dimple foil pick :

Lately I’ve decided to try more dimple locks with the foil method and I’ve had some good results(and some bad..)

The big  problem with dimple foil is that  in some key ways  it will tear the foil and it will be very hard to introduce a key that the foil won’t bend at some positions,also a deep cut near a low-cut can cause a problem.

The first lock I tested was a Keso 2000 ,this lock can be impressioned and picked but it would be very hard on a real door ,a simple solution is needed in here.

I  first tried to use a Keso blank to try foil but that didn’t work as the foil failed to enter the key way.I then tried some different blanks and different cutting of the key and found out that I can use a smaller shape blank and use a few layers of foils on a key meaning that if the first foil layer isn’t working after a few seconds then a second or even a third layer will open the lock.

 Here is a video of the Keso foil picking

I have 6 other Keso locks which ALL of them were opened in a very short time ,this tells me that this method of using a smaller key is working .

Also I stand correct Keso are made in Switzerland and not in Italy.

This is  the key after the picking

I’m currently working on some other locks like Kaba etc. I will keep you posted.


Dom Dimple Locks



Here is a quick view on 2 Dom locks I got

The top lock is  a Dom ix 5 HT  (Hope I’m not wrong)

The lower one is Dom ix 10 ,those are very good locks made in Germany

The Dom ix 5 is very interesting  as it got a sort of a trap pin and since it’s a very old lock I guess this is where the idea came from

Also it has one of the most nastiest  bottom pins I’ve ever seen!

Those pins have 2 rounds that can move inside of  them (like a brasless)

The ix 5 lock contains 5 pins and 5 side pins

 Here is the back of the plug with the other side pins,those pins will not effect picking but  they are great for master keying .

I did managed to bump this lock a while back though

The other Dom lock is the ix 10 which looks very hard to pick.

The  ix 10 contains 10 pins which are divided into 2 very close rows

The pins are rounded to the shape of the plug

Also there is plate cover on the other side of the plug which I belive is there so the plug can rotate smoother

Here are 2 of the bottom pins

I can safely say that the best way to pick this lock is via foil picking ,only trouble I see is the extracting of the key after,also the low pins might get overset (they would look like pin number 5)

I will try to test a few different methods with those fantastic locks ,will  keep you posted

For much more information I would advise to read Han fey’s fantastic articles about Dom locks

http://toool.nl/images/c/c0/Dom-ix.pdf


Mul-T-Lock 3 in 1

Just a quick look on how this neat system works. The purpose of this lock is to give a free change key without changing the lock itself . I haven’t looked into other systems yet, but I reckon they all have the same principle more or less.

Image hosted by servimg.com

The lock comes with 3 keys (usually green, yellow and red). The outer pins are all the same but the inner pins have a different end to them.

Image hosted by servimg.com

The inner pins come with an extra ball that will break into the plug which has special holes for that.

Image hosted by servimg.com

Here you can see the first key shear line. This key will work as long as you will put the next key in.

Image hosted by servimg.com

The next key is inserted, but the key combination is different. The inner pin is lower in one step, and the little ball will now arise and break when the plug is turned, leaving the first key useless.

Image hosted by servimg.com

Image hosted by servimg.com

And again now on pin number 5 . Lower combination key is inserted into the lock, leaving the second key useless.

Image hosted by servimg.com

So this is the basic change key system. It can also be 5 in 1 system and as you can see, bumping this lock with the old key is very very easy.


Locks Bumping

Bumping is a method that existed for years, but only in the last few years it was been exposed to the public’s eye, mainly through the internet.

A bump key is actually a key that is cut to the highest position, when you hit that key some pins will jump and with the perfect timing it would be possible to turn the plug. Some very high security locks surrender to this method.

Here is how it works..

This is a Linca lock from Spain, this lock has 5 pins and a side bar

A Fab lock that is almost impossible to pick

A Yardeny lock from Israel with 10 pins

Kaba 12 pins lock

A 7 pins Herman dimple lock

Magnum 7 pins dimple lock from China

The world’s smallest bum key? Only 3 pins

A Dom lock
